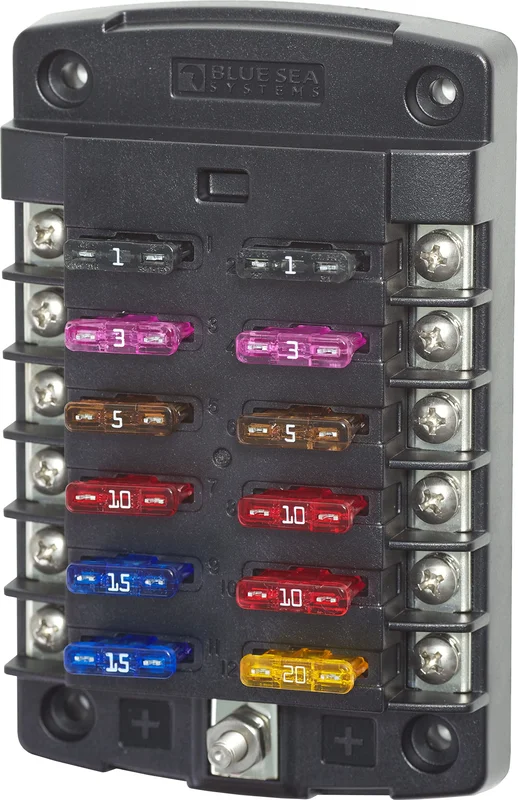

Blue Sea Systems 5034 St Blade Fuse Block 12 Circuit

Description

Blue Sea Systems Fuse Block ST Blade 12 Circuit, part number 5034, can be used for 24-hour circuits. Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Negative bus: #10-32 stud, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer. Positive distribution bus with #10-32 stud. Tin-plated copper buses and fuse clips. Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses – fuses sold separately.
