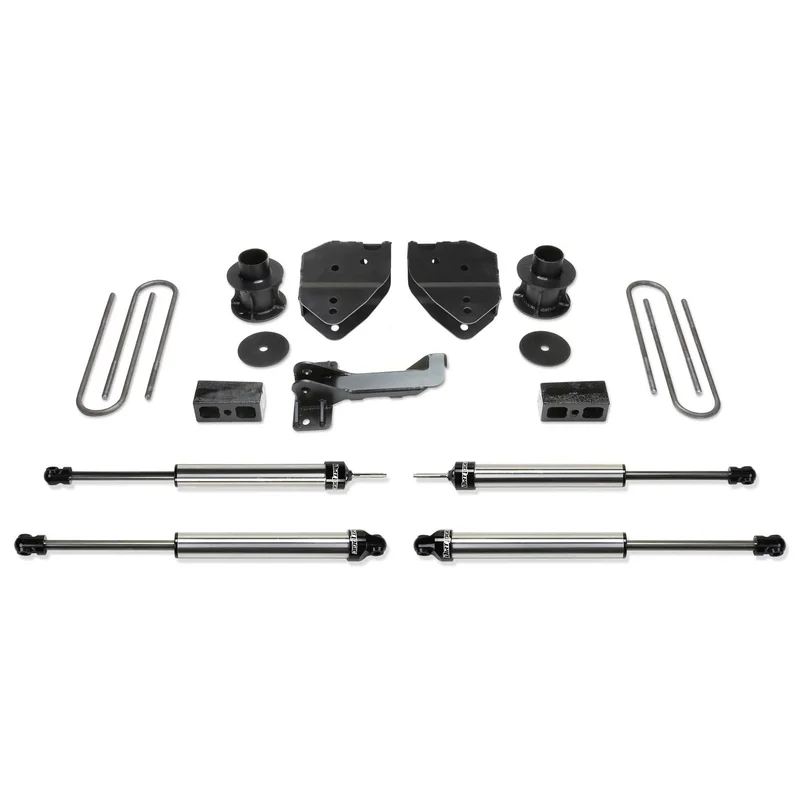

Fabtech 4″ BUDGET SYS W/DLSS SHKS 17-21 FORD F250/F350 4WD K2213DL

Description

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4” Budget System. The 4” Budget System utilizes the factory front coil springs with a steel upper spacer providing 4” of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. This kit includes front and rear Dirt Logic shocks. System allows installation of 35” tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.r

Attributes:

r

r
• GTIN: 00674866102910

r

• Brand Name: Fabtech

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 39 x 30 x 15.59 inches

r

• Weight: 149.4 lb
