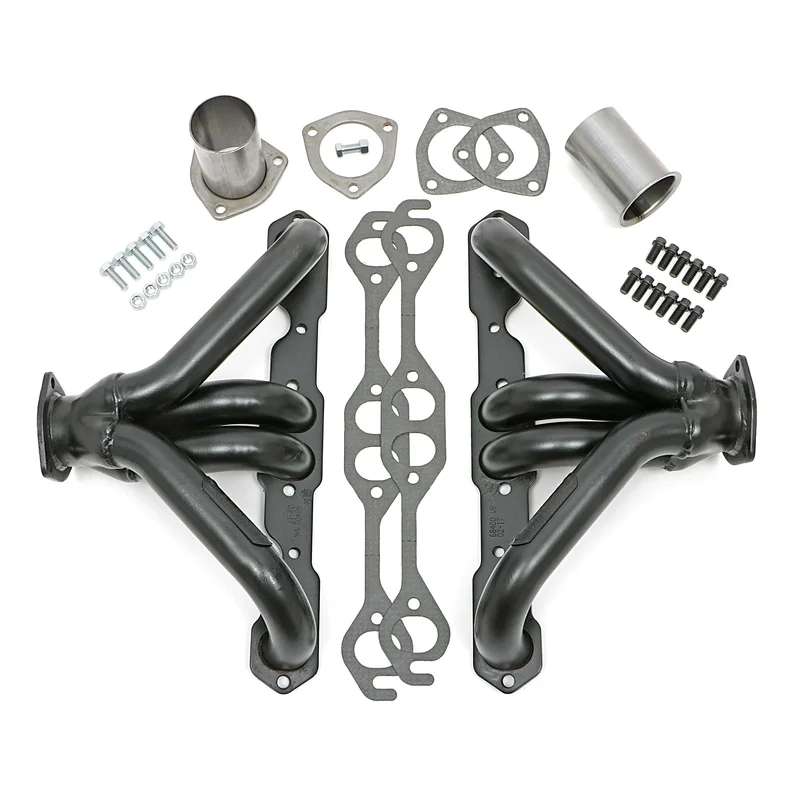

Hedman Hedders BLOCK HUGGER HEADERS; CHEVY SB 283-400; 1-5/8 IN. TUBES; UNCOATED 68400

Description

r

• Handcrafted, Mild Steel Construction.

r

• Classic Block Hugger Style Is Perfect For Street Rods, and Cramped Custom Builds That Do Not Have Enough Clearance For Mid-Length or Long Tube Headers.

r

• Classic 3-Bolt Gasket-Style Header Collectors

r

• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)

r

• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!

r

• Proud To Say, Made In The USA, Since 1954!

r

rr

Attributes:

r

r
• GTIN: 00732611684002

r

• Brand Name: Hedman Hedders

r

• Motor Mounts Included: No

r

• Quantity: Sold as a pair.

r

• Cylinder Head: Stock Profile Heads

r

• Replacement Gasket: 27520

r

• Installation Hardware Included: Yes

r

• with A.I.R. System: No

r

• with EGR: No

r

• Y-Pipe Included: No

r

• Collector Attachment: 2-1/2 in.

r

• Emissions Notes: NOT LEGAL FOR STREET USE ON ’75-LATER MODEL YEARS! Legal for off-road use only.

r

• Transmission Notes: Modification to shifter linkage may be required.

r

• Automatic Transmission – Floor: Yes

r

• Automatic Transmission – Column: Yes

r

• Manual Transmission – Column: Yes

r

• Manual Transmission – Floor: Yes

r

• Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions

r

• Notes: Street Rod Universal Shorty Chev. 283-400 Angle Plug Heads

r

• Engine: Chevy SB 283-400

r

• Collector Diameter: 2-1/2 in.

r

• Tube Style: Block Huggers

r

• E.O. #: No

r

• Package Contents: Headers, reducers (exhaust adapters), gaskets, mounting hardware

r

• Tube Material Thickness: 16g

r

• Primary Tube Gauge: 16g

r

• Bolts/Studs Included: Yes

r

• Flange Thickness: 0.375 in.

r

• Gasket Or Seal Included: Yes

r

• Header Style: Block Huggers- Street Rod

r

• Reducers Included: Yes

r

• Collector Size: 2-1/2 in.

r

• Collector Style: 3-Bolt Gasket Style Flange

r

• Exhaust System Dia: 2-1/2 in.

r

• Finish: Uncoated

r

• Finish Type: Uncoated Mild steel

r

• Flange Style: Standard

r

• Replacement Head Flange Gasket: 27520

r

• Header Port Shape: Oval Port

r

• Material: Mild Steel

r

• Port Shape: Oval

r

• Reducer Outlet Size: 2-1/2 in.

r

• Tube Design: BLOCK HUGGERS

r

• Tube Diameter: 1-5/8 in.

r

• Tube Length: Short Tubes

r

• Tube Size: 1-5/8 in.

r

• Variations: 68406

r

• Cylinder Head Port Shape: Oval

r

• Header Finish: Uncoated

r

• Header Material: Mild Steel

r

• Mounting Hardware Included: Yes

r

• Primary Tube Diameter (in): 1.625 in.

r

• Tuned: No

r

• Weld-Up: No

r

• Collector Bolts Included: Yes

r

• Catalytic Converter(s) Included: No

r

• Crossover Pipe Included: No

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : EPA Eligible

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: ST

r

• Dimension: 20.000 x 13.500 x 8.250 inches

r

• Weight: 15.000 lb
