Hedman Hedders HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN 66117

Description

r

• Handcrafted, Mild Steel Construction.

r

• Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.

r

• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

r

• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)

r

• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!

r

• Proud To Say, Made In The USA, Since 1954!

r

rr

Attributes:

r

r
• GTIN: 00732611661171

r

• Brand Name: Hedman Hedders

r

• Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)

r

• Exhaust System Dia: 2-1/2 in.

r

• Finish: HTC Polished Silver Ceramic-Metallic

r

• Finish Type: HTC SILVER (polished) Ceramic-metallic Coating

r

• Flange Style: Standard

r

• Replacement Head Flange Gasket: 27530

r

• Header Port Shape: Round

r

• Manual Transmission – Column: No

r

• Manual Transmission – Floor: Yes

r

• Material: Mild Steel

r

• Port Shape: Round

r

• Power Steering: Yes

r

• Reducer Outlet Size: 2-1/2 in.

r

• Tube Design: LONG TUBES

r

• Tube Diameter: 1-3/4 in.

r

• Tube Length: Long Tubes

r

• Tube Size: 1-3/4 in.

r

• Variations: 69117, 69827

r

• Cylinder Head Port Shape: Round

r

• Header Finish: HTC Polished Silver Ceramic-Metallic

r

• Header Material: Mild Steel

r

• Mounting Hardware Included: Yes

r

• Primary Tube Diameter (in): 1.75 in.

r

• Tuned: No

r

• Weld-Up: No

r

• Collector Bolts Included: Yes

r

• Catalytic Converter(s) Included: No

r

• Crossover Pipe Included: No

r

• Motor Mounts Included: No

r

• Quantity: Sold as a pair.

r

• Cylinder Head: Stock Profile Heads

r

• Replacement Gasket: 27530

r

• Installation Hardware Included: Yes

r

• with A.I.R. System: No

r

• with EGR: No

r

• Y-Pipe Included: No

r

• Collector Attachment: 3 in.

r

• Header Construction: Standard-Duty

r

• E.O. #: Yes

r

• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware

r

• Notes: 68-91 GM 1/2, 3/4, 1 Ton Truck/SUV 2-4WD 396-502

r

• Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!

r

• Collector Diameter: 3 in.

r

• Tube Style: Long Tubes

r

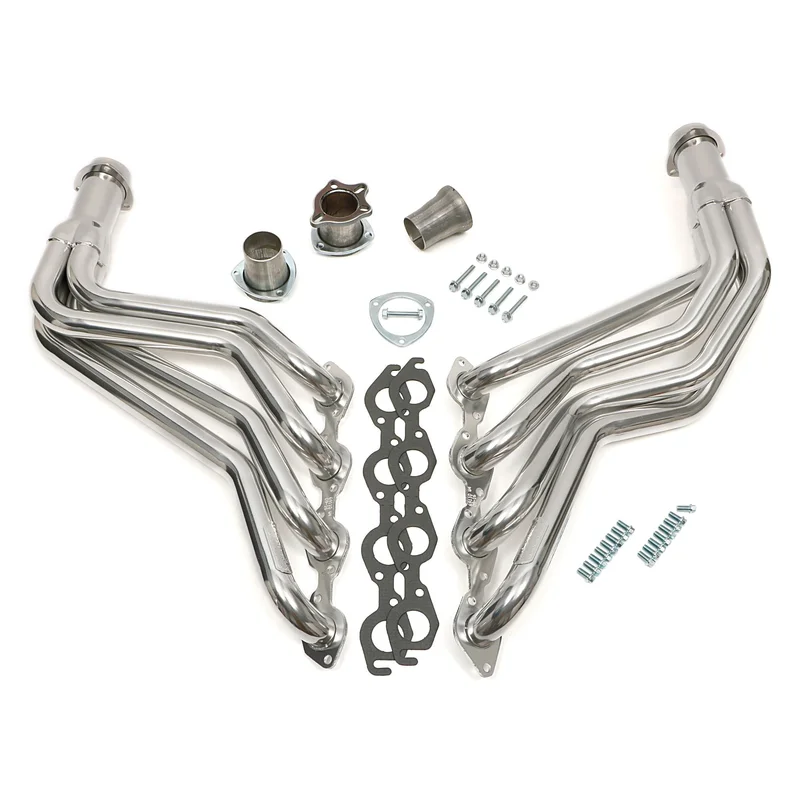

• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

r

• Tube Material Thickness: 16g

r

• Primary Tube Gauge: 16g

r

• Flange Thickness: 0.3125 in.

r

• Bolts/Studs Included: Yes

r

• Gasket Or Seal Included: Yes

r

• Header Style: Long Tube

r

• Reducers Included: Yes

r

• Air Conditioning: Yes

r

• Automatic Transmission – Column: Yes

r

• Automatic Transmission – Floor: Yes

r

• Collector Size: 3 in.

r

• Collector Style: BALL and SOCKET Style (Gasketless)

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: ST

r

• Dimension: 39.000 x 16.500 x 8.250 inches

r

• Weight: 39.000 lb
