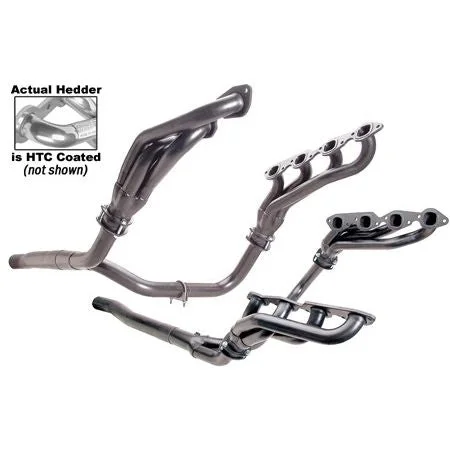

Hedman Hedders HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN 69576

Description

r

• Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes

r

• The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.

r

• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

r

• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)

r

• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!

r

• Proud To Say, Made In The USA, Since 1954!

r

rr

Attributes:

r

r
• GTIN: 00732611695763

r

• Brand Name: Hedman Hedders

r

• Catalytic Converter(s) Included: No

r

• Crossover Pipe Included: Yes

r

• Crossover Pipe Style: Y-pipe

r

• Motor Mounts Included: No

r

• Quantity: Sold as a kit.

r

• Cylinder Head: Stock Profile Heads

r

• Replacement Gasket: 27550

r

• Installation Hardware Included: Yes

r

• with A.I.R. System: No

r

• with EGR: No

r

• Y-Pipe Included: Yes

r

• Header Construction: Standard-Duty

r

• E.O. #: Yes

r

• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware

r

• Notes: 88-95 GM 1/2, 3/4, 1 Ton Truck/SUV 2-4WD

r

• Collector Attachment: Stock

r

• Collector Diameter: Stock

r

• Exhaust System Dia: 3 in.

r

• Reducer Outlet Size: Factory hookup

r

• Tube Length: Mid-Length Tubes

r

• Tube Style: Mid-Length

r

• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

r

• Bolts/Studs Included: Yes

r

• Flange Thickness: 0.375 in.

r

• Gasket Or Seal Included: Yes

r

• Header Style: Mid-Length Tube

r

• Reducers Included: No

r

• Air Conditioning: Yes

r

• Automatic Transmission – Column: Yes

r

• Automatic Transmission – Floor: Yes

r

• Collector Size: Stock

r

• Collector Style: BALL and SOCKET Style (Gasketless)

r

• Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)

r

• Finish: HTC Polished Silver Ceramic-Metallic

r

• Finish Type: HTC SILVER (polished) Ceramic-metallic Coating

r

• Flange Style: Standard

r

• Replacement Head Flange Gasket: 27550

r

• Header Port Shape: Square

r

• Manual Transmission – Column: No

r

• Manual Transmission – Floor: Yes

r

• Material: Mild Steel

r

• Port Shape: Square

r

• Power Steering: Yes

r

• Tube Design: MID-LENGTH

r

• Tube Diameter: 1-3/4 in.

r

• Tube Material Thickness: 16g

r

• Tube Size: 1-3/4 in.

r

• Variations: 69570

r

• Cylinder Head Port Shape: Square

r

• Header Finish: HTC Polished Silver Ceramic-Metallic

r

• Header Material: Mild Steel

r

• Mounting Hardware Included: Yes

r

• Primary Tube Diameter (in): 1.75 in.

r

• Primary Tube Gauge: 16g

r

• Tuned: No

r

• Weld-Up: No

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: ST

r

• Dimension: 29.000 x 16.500 x 8.250 inches

r

• Weight: 37.000 lb

r

rr

PDF:

r

r

PDF:

r 69576rr
