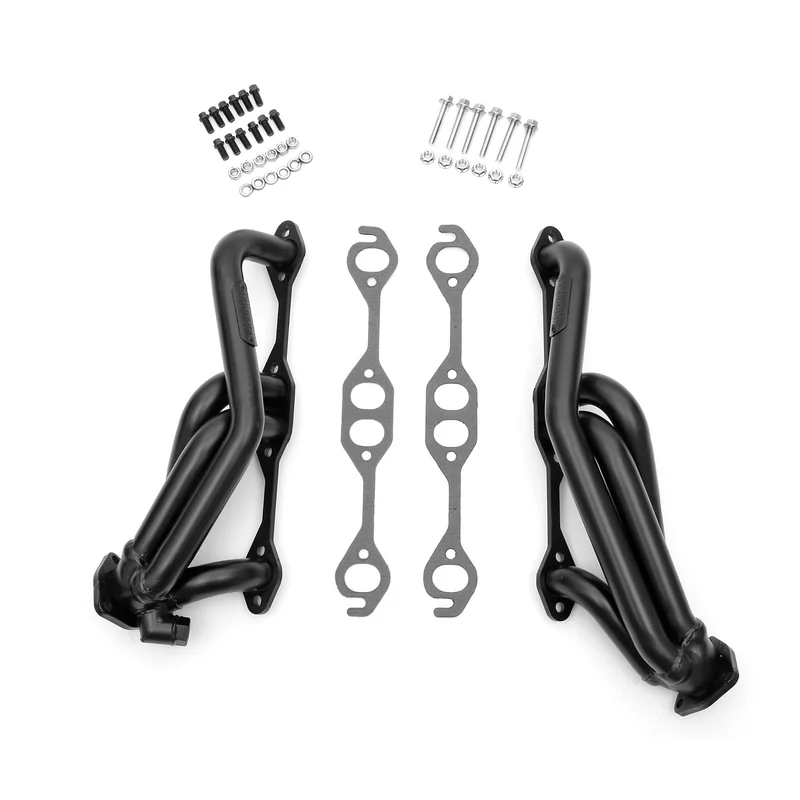

Hedman Hedders STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN 69650

Description

r

• Handcrafted, Mild Steel Construction.

r

• The Short Tube Header Design Provides Good Low-End Power, and Provides Excellent Ground Clearance And Component Compatibility.

r

• Stock-Style Header Collector Bolts Up To The Factory Exhaust Without Modification.

r

• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)

r

• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!

r

• Proud To Say, Made In The USA, Since 1954!

r

rr

Attributes:

r

r
• GTIN: 00732611696500

r

• Brand Name: Hedman Hedders

r

• Bolts/Studs Included: Yes

r

• Flange Thickness: 0.3125 in.

r

• Gasket Or Seal Included: Yes

r

• Header Style: Short Tube

r

• Reducers Included: No

r

• Air Conditioning: Yes

r

• Automatic Transmission – Column: Yes

r

• Automatic Transmission – Floor: Yes

r

• Collector Size: Stock

r

• Collector Style: Stock Collector

r

• Contents: Headers, gaskets, header & collector bolts/nuts. Collector donuts not included!

r

• Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)

r

• Finish: Uncoated

r

• Finish Type: Uncoated Mild steel

r

• Flange Style: Standard

r

• Replacement Head Flange Gasket: 27520

r

• Header Port Shape: Oval Port

r

• Manual Transmission – Column: No

r

• Manual Transmission – Floor: Yes

r

• Material: Mild Steel

r

• Port Shape: Oval

r

• Power Steering: Yes

r

• Special Engine Notes: VORTEC

r

• Tube Design: SHORT TUBES

r

• Tube Diameter: 1-1/2 in.

r

• Tube Length: Short Tubes

r

• Tube Material Thickness: 16g

r

• Tube Size: 1-1/2 in.

r

• Tube Style: Shorty

r

• Variations: 69656

r

• Cylinder Head Port Shape: Oval

r

• Header Finish: Uncoated

r

• Header Material: Mild Steel

r

• Mounting Hardware Included: Yes

r

• Primary Tube Diameter (in): 1.50 in.

r

• Primary Tube Gauge: 16g

r

• Tuned: No

r

• Weld-Up: No

r

• Catalytic Converter(s) Included: No

r

• Crossover Pipe Included: No

r

• Motor Mounts Included: No

r

• Quantity: Sold as a pair.

r

• Cylinder Head: Stock Profile Heads

r

• Replacement Gasket: 27520

r

• Installation Hardware Included: Yes

r

• Package Contents: Headers, gaskets, header & collector bolts/nuts. Collector donuts not included!

r

• with A.I.R. System: No

r

• with EGR: Yes

r

• Y-Pipe Included: No

r

• Collector Attachment: Stock

r

• Header Construction: Standard-Duty

r

• E.O. #: Yes

r

• Collector Bolts Included: Yes

r

• Collector Gasket Included: No (Requires GM #15093974, or equivalent, exhaust seal)

r

• Notes: 96-00 Chev. 1/2, 3/4, 1 Ton Truck 2-4WD

r

• Collector Diameter: Stock

r

• Exhaust System Dia: Factory hookup

r

• Reducer Outlet Size: Stock

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: ST

r

• Dimension: 20.000 x 13.500 x 8.250 inches

r

• Weight: 21.000 lb

r

rr

PDF:

r

r

PDF:

r 69650series-Instructionsheetrr
