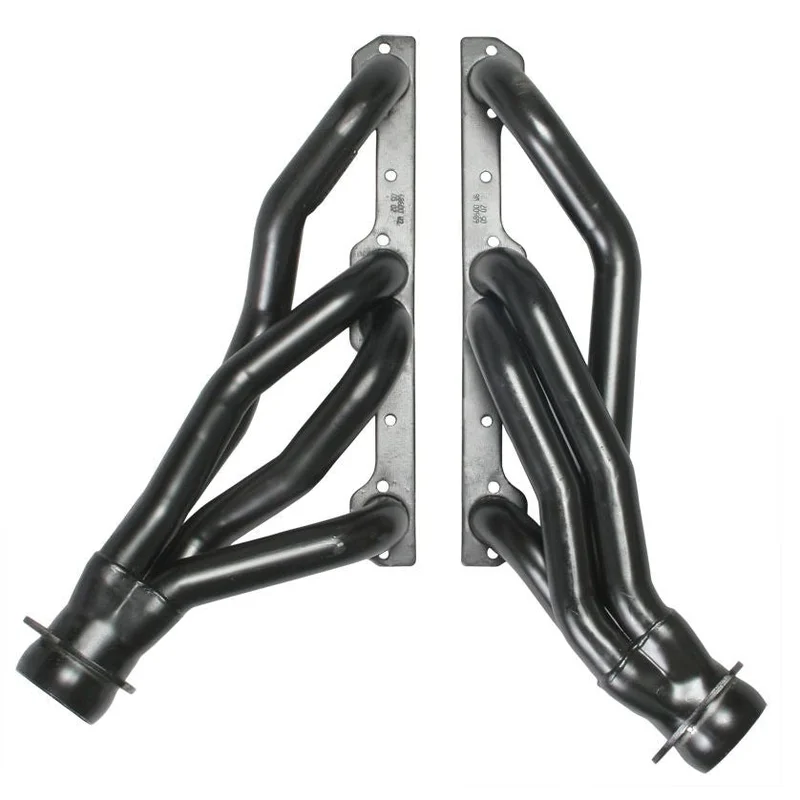

Hedman Hedders STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN 68609

Description

r

• Handcrafted, Mild Steel Construction.

r

• The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.

r

• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

r

• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)

r

• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!

r

• Proud To Say, Made In The USA, Since 1954!

r

rr

Attributes:

r

r
• GTIN: 00732611686099

r

• Brand Name: Hedman Hedders

r

• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

r

• Tube Material Thickness: 16g

r

• Primary Tube Gauge: 16g

r

• Flange Thickness: 0.3125 in.

r

• Bolts/Studs Included: Yes

r

• Gasket Or Seal Included: Yes

r

• Header Style: Mid-Length Tube

r

• Reducers Included: Yes

r

• Automatic Transmission – Column: Yes

r

• Automatic Transmission – Floor: Yes

r

• Collector Size: 3 in.

r

• Collector Style: BALL and SOCKET Style (Gasketless)

r

• Exhaust System Dia: 2-1/2 in.

r

• Finish: Uncoated

r

• Flange Style: Standard

r

• Header Port Shape: D-Port

r

• Key Feature: D-Port Heads

r

• Manual Transmission – Column: No

r

• Manual Transmission – Floor: No

r

• Material: Mild Steel

r

• Port Shape: D-port

r

• Power Steering: Yes

r

• Reducer Outlet Size: 2-1/2 in.

r

• Special Engine Notes: D-PORT

r

• Tube Diameter: 1-5/8 in.

r

• Variations: 68609, 66609 & 63609.

r

• Cylinder Head Port Shape: D-port

r

• Mounting Hardware Included: Yes

r

• Tuned: No

r

• Weld-Up: No

r

• Collector Bolts Included: Yes

r

• Catalytic Converter(s) Included: No

r

• Crossover Pipe Included: No

r

• Quantity: Sold as a pair.

r

• Cylinder Head: Stock Profile Heads

r

• Replacement Gasket: 27690

r

• Installation Hardware Included: Yes

r

• with A.I.R. System: No

r

• with EGR: No

r

• Y-Pipe Included: No

r

• Emissions Notes: NOT LEGAL FOR STREET USE ON ’75-LATER MODEL YEARS! Legal for off-road use only.

r

• Header Construction: Standard-Duty

r

• E.O. #: No

r

• Notes: 67-81 F; 64-83 A, 82-88 G; 68-79 X; 71-94 B; 84-04 Astro 283-400

r

• Engine: Chevy SB 283-400 (Gen 1) D-Port

r

• Tube Design: MID-LENGTH

r

• Tube Style: Mid-Length

r

• Collector Attachment: 3 in.

r

• Collector Diameter: 3 in.

r

• Primary Tube Diameter (in): 1.625 in.

r

• Tube Length: Mid-Length Tubes

r

• Tube Size: 1-5/8 in.

r

• Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

r

• Finish Type: Uncoated Mild steel

r

• Header Finish: Uncoated

r

• Header Material: Mild Steel

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : EPA Eligible

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: ST

r

• Dimension: 29.000 x 16.500 x 8.250 inches

r

• Weight: 23.000 lb
