Description
r

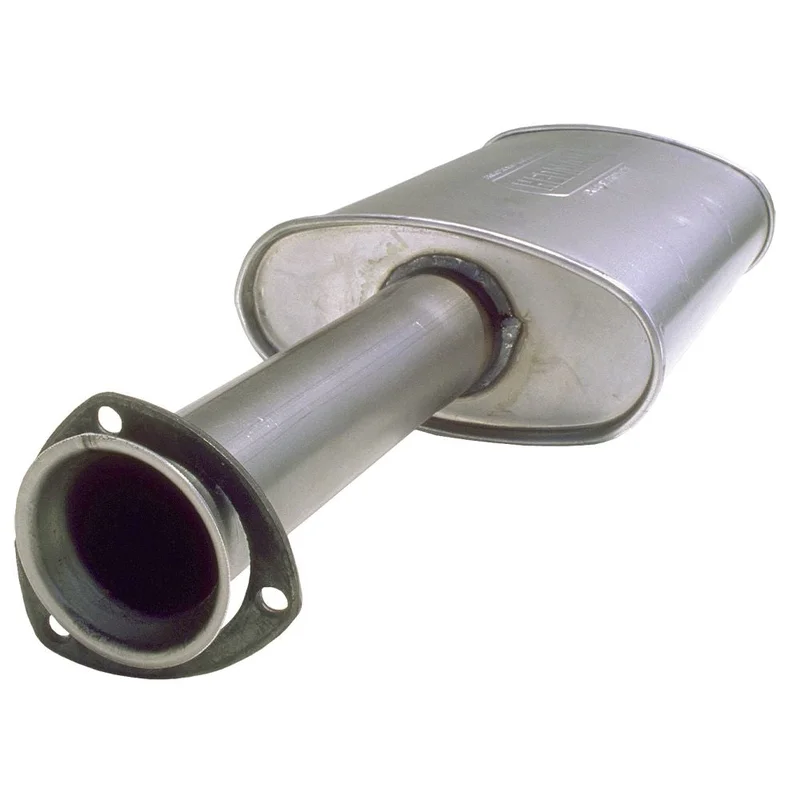

- Pre-Welded, Ball and Socket Extension Tube Bolts Directly To Hedman’s Ball-Style Header Collectors
- Offers a Smooth, Performance Growl To Your Exhaust
- Spun End Caps For A Tight Seal
- Reversible Flow Design
- Double Wrapped Casing For maximum corrosion resistance.
- Made In The USA!
r
r
r
r
r
r
rr
Attributes:
r
- r
- GTIN: 00732611256605
- Brand Name: Hedman Hedders
- Collector Attachment: 3 in.
- Collector Size: 3 in.
- Collector Style: 3-Bolt Gasket Style Flange
- Exhaust System Dia: 2-1/4 in.
- Finish: Galvanized Steel
- Finish Type: All Materials are unfinished.
- Inlet Diameter: 2.25 in.
- Material: Steel
- Outlet Diameter: 3 in.
- Overall Length: 28 in.
- Baffle Design: Reverse Flow
- Baffle Material: Steel
- Hanger Included: No
- Inlet Inside Diameter: 2-1/4 in.
- Inlet Location: Center
- Inlet Offset: Center
- Inlet Outside Diameter: 2-3/8 in.
- Inlet Pipe Diameter: 2-1/4 in.
- Inlet Position: Center
- Inlet Quantity: 1
- Installation Hardware Included: No
- Internal Construction: Spot-Welded, Louvered Baffles
- Outlet Configuration: Offset
- Outlet Inside Diameter: 2-1/4 in.
- Outlet Location: Offset
- Outlet Offset: 3-1/2 in.
- Outlet Outside Diameter: 2-3/8 in.
- Outlet Position: Offset
- Outlet Quantity: 1
- Outlet Size(s): 2-1/4 in.
- Reversible: No
- Shell Diameter Height: 4-1/2 in.
- Shell Diameter Width: 10 in.
- Shell Length: 14 in.
- Shell Material: Galvanized Steel
- Shell Shape: Rectangle
- Length: 28 in.
- Dimensions: 28 in. (long) x 10 in. (wide) x 4-1/2 in. (tall)
- Flange Thickness: 0.3125 in.
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
rr
Extended Information:
r
- r
- Country of Origin: United States
- Emissions : Electronically Announced
- Life Cycle Status: Available To Order
r
r
r
rr
Packing Information:
r
- r
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 29.000 x 10.250 x 4.500 inches
- Weight: 12.000 lb
