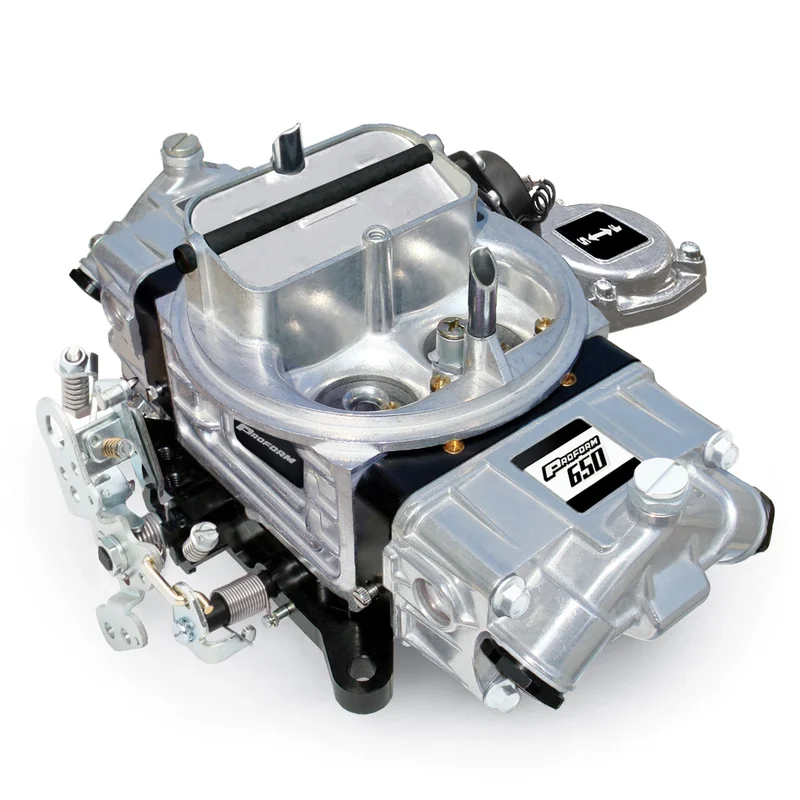

Proform Engine Carburetor; Street Series Model; 650 CFM; Vacuum Secondaries Type 67207

Description

PROFORM’s new Street Series Carburetors are hand assembled in the U.S. Based on the wildly successful Race Series carburetors the new PROFORM street carburetors. Constructed of light weight aluminum, changeable idle air bleeds for easy non-permanent calibration changes if needed. Fine tuning is accomplished by simply changing air bleeds not opening calibration restrictions with a drill bit. Each street carburetor features a billet metering block with a street performance calibration developed for today’s high performance engines. Four corner idle on mechanical secondary carburetor to help fine tune the idle with aggressive camshaft profile. Changeable idle feed restrictions expand the idle adjustment capabilities. Conventional service and tuning components are available in most performance retail outlets. Also the billet throttle body for superior strength, coupled with precision throttle shafts to ensure long term performance. All PROFORM carburetors have easy access adjustable secondary air flow. Others require special tools or removal of the carburetor to accomplish this simple adjustment. Complete with high quality, light weight die-cast aluminum fuel bowls with fuel level windows for quick reference. Float level changes do not require removal of a sight plug with the risk of fuel spilling. Bowls come equipped with 3/8in inverted flare fuel inlet fittings and will accept all conventional dual feed fuel lines compatible with Holley four barrel carburetors. Like all PROFORM carburetors, service parts are readily available however, should you not find PROFORM service parts, our carburetors are compatible with any modular carburetor service parts available at a local parts store or retail outlet.r

Attributes:

r

r
• GTIN: 00037995352074

r

• Brand Name: Proform

r

• Air Bleed Material: Brass

r

• Air Bleed Material: Brass

r

• Air Bleed Size (Inner High Speed): 28

r

• Air Bleed Size (Outer Idle): 70 / 70

r

• Air Bleeds Included: Yes

r

• Air Bleeds Included: Yes

r

• Base Plate Material: Billet Aluminum

r

• Booster Style: Down-Leg Boosters

r

• Calibration: Universal

r

• CFM: 650 CFM

r

• Choke: Electric Choke

r

• Color: Dichromate Finish

r

• Discharge Nozzle Size (Primary / Secondary): .031 in. / .031 in.

r

• EGR: Without EGR

r

• Emissions: 49 State Legal

r

• Feature/Benefit: Hand assembled in the U.S.A.

r

• Finish: Vibratory Tumble Polished

r

• Flange Style: Square Bore

r

• Ford Kickdown Bracket Included: Yes

r

• Fuel Inlet Thread: 7/8-in. x20

r

• Fuel Inlet: Dual

r

• Fuel: Gasoline

r

• Height (IN): 3.25 inch

r

• Idle/High Speed Air Bleed Sizes: 70 / 76

r

• Main Body Material: Lightweight Aluminum

r

• Material: Aluminum

r

• Metering Block Material: Billet Aluminum

r

• Note: When this model was originally released it did include a secondary metering block, but now has a billet metering plate that is not visible from the exterior. Our current model includes one metering block, so please check with your retailer before purchasing.

r

• Number of Barrels: 4

r

• Part Type: Carburetor

r

• Primary Main Jet Size: 86 / 93

r

• Primary Power Valve (Hg): 6.5

r

• Secondaries: Vacuum Secondaries

r

• Series: Street Series

r

• Throttle Linkage: Universal

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Electronically Announced

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 13 x 12 x 7.5 inches

r

• Weight: 9.8 lb
