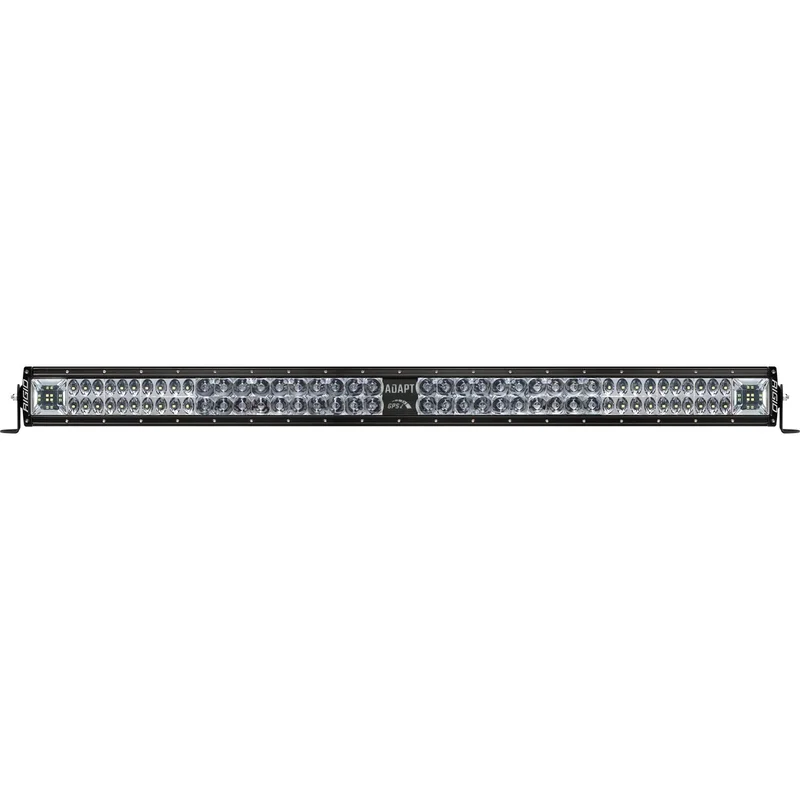

RIGID Industries Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module 40 Inch 280413

Description

The RIGID Adapt E-Series LED Light Bar features the same style and construction as RIGIDs legendary E-Series, from the high-strength aluminum heat sink to the unbreakable polycarbonate lens. On the inside, however, the Adapt E-Series contains cutting-edge technology. The Adapt E-Series takes off-road lighting performance to a whole new level with two layers of adaptive response to your vehicle and driving conditions.r

• Universal Fit, Fits All Existing E-Series Grilles and Mounts

r

• Use In Adapt Mode Or All On

r

• Limited Lifetime Warranty

r

• Alloy Housing and Heatsink

r

• Unbreakable Polycarbonate Lens

r

• Pressure Equalizing Vent

r

• Black Exposed Printed Circuit Board

r

• Patented Optics

r

• 50,000 Hr+ LED Lifespan

r

• Off Road Use Only

r

• Harness, Switch & Relay Included

r

• 3 Optic Zones – Scene, Driving, Spot

r

• Seamless Beam Transition

r

• Slow Speed, Moderate Speed & High Speed Beam Patterns

r

• 9-36 VDC

r

• Two Layers of Adaptive Response

r

• Active Power Management System – Power Capacity Sensing

r

• Active View Technology – Internal GPS Module

r

rr

Attributes:

r

r
• GTIN: 00849774033162

r

• Brand Name: RIGID Industries

r

• Zone 2 Peak CD: 158027

r

• Zone 2 Raw Lm: 25520

r

• Zone 2 Vertical Field beam angle: 24.4

r

• Zone 2 Watts: 189

r

• Zone 3 A: 7424.6

r

• Zone 3 Amp Draw: 16.5

r

• Zone 3 B: 861.7

r

• Zone 3 C: 1723.3

r

• Zone 3 Horizontal Field beam angle: 17.5

r

• Zone 3 LED’s count: 40

r

• Zone 3 Peak CD: 742460

r

• Zone 3 Raw Lm: 29920

r

• Zone 3 Vertical Field beam angle: 15.9

r

• Zone 3 Watts: 231

r

• A = LUX at 10 Meters: 7425

r

• Add-On: 11001, 11002, 11003, 11008, 46590, 1063, 1067, 1031, 30130, 30140, 30150

r

• ASIN: No

r

• B = Beam Distance with 1 LUX: 862

r

• C = Beam Distance with .25 LUX: 1723

r

• Field Horizontal (Measured in Degrees): 17

r

• Field Vertical (Measured in Degrees): 16

r

• Number of LEDs: 88

r

• Peak Beam Intensity (cd): 742460

r

• Product Family: Adapt

r

• Product Fits What: Universal Fit

r

• Product Weight: 10.84

r

• Raw Lumens: 29920

r

• Size: 40 in.

r

• Watts: 231

r

• What’s In The Package: Stainless Steel Mounting Brackets, Hardware Kit, Wire Harness, Relay, Switch, Install Instructions

r

• Zone 1 A: 52.85

r

• Zone 1 Amp Draw: 6.3

r

• Zone 1 B: 72.7

r

• Zone 1 C: 145.4

r

• Zone 1 Horizontal Field beam angle: 101.6

r

• Zone 1 LED’s count: 8

r

• Zone 1 Peak CD: 5285

r

• Zone 1 Raw Lm: 8641

r

• Zone 1 Vertical Field beam angle: 96.4

r

• Zone 1 Watts: 88

r

• Zone 2 A: 1580.27

r

• Zone 2 Amp Draw: 13.5

r

• Zone 2 B: 397.5

r

• Zone 2 C: 795.1

r

• Zone 2 Horizontal Field beam angle: 50.6

r

• Zone 2 LED’s count: 40

r

rr

Extended Information:

r

r
• Country of Origin: Mexico

r

• Emissions : Emissions Compliance Exempt

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 6 x 43.25 x 6 inches

r

• Weight: 15 lb

r

rr

PDF:

r 11-13416-A-Adapt_E-Series
