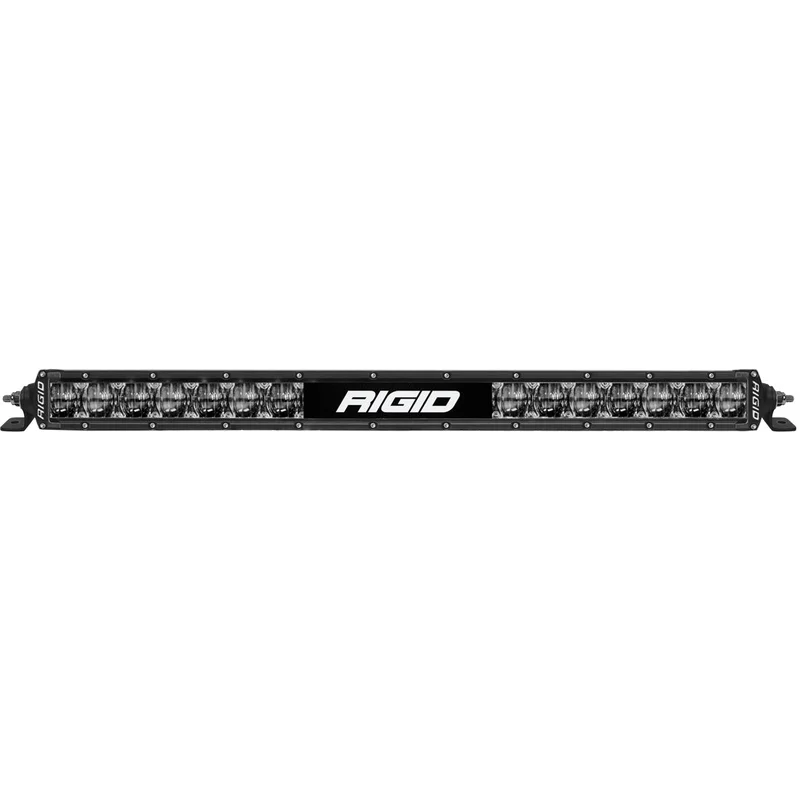

RIGID Industries SR-Series 20 in Dual Function SAE Auxilary High Beam Driving Lights with Amber Backlight 920414

Description

Off-road auxiliary lighting is one thing, but everyone knows that it’s important to have lighting that is also safe and legal for on-road use. RIGID’s SAE Compliant Fog Lights and Auxiliary High Beam Driving Lights allow them to be used on-the-road and not just off-road. RIGID created the proprietary output spread and height with the new patented Clarilux(TM) optic system. The color temperature of these LEDs was carefully chosen to be a perfect range of pure daylight to penetrate the night for superior clarity on the road. These SAE Compliant lights project long-range high intensity light while drawing very little power and provide up to 50,000 useful hours. As an added function, the SR-Series SAE compliant lights offer Amber backlighting. This feature can be ran independently, or in tandem with the forward projecting LEDs. The low profile design includes a High-Grade Aluminum Alloy Housing with a custom designed oversized heat sink to keep the LEDs running cooler, brighter and longer. Combine this with the strength of a polycarbonate lens; the RIGID SAE Compliant Lights represent the ultimate solution for your street-legal lighting in North America.r

• SAE J581 Compliant Street Legal Auxiliary High Beam LED Light

r

• IP68 Rated – Dust/Water Ingress

r

• Pressure Equalizing Vent

r

• Patented Optics

r

• Durable UV Polyester Powder Coat

r

• 50,000 Hour Lifespan

r

• Operating Temp -40 Deg F To +145 Deg F

r

• RoHS Compliant

r

• Limited Lifetime Warranty

r

• Legal For On Road and Off Road Use

r

• Toggleable Amber Backlight

r

• Multi-Function With RIGID Branding Plate

r

• Integrated Thermal Management System

r

• 9-36 VDC Operation

r

• RFI/EMI Protection

r

• Impact Resistant Polycarbonate Lens

r

• High Grade Alloy Housing And Heatsink

r

• Over/Under Voltage Protection

r

rr

Attributes:

r

r
• GTIN: 00849774033827

r

• Brand Name: RIGID Industries

r

• # of LED’s: 28

r

• A = LUX at 10 Meters: 342.6

r

• Amp Draw: 6.8

r

• B = Beam Distance with 1 LUX: 185.1

r

• C = Beam Distance with .25 LUX: 370.2

r

• Field Horizontal (Measured in Degrees): 68.7

r

• Field Vertical (Measured in Degrees): 10.2

r

• Lighting Family: SR-Series

r

• Peak Beam Intensity (cd): 34263

r

• Product Family: Fog Lights

r

• Product Fits What: Universal

r

• Product Weight: 5.3

r

• Raw Lumens: 8253

r

• Watts: 95

r

• What’s In The Package: SR-Series 20 Inch Dual Function SAE Auxiliary High Beam Driving Lights with Amber Backlight, two black powder coated L-shape brackets, mounting Hardware, wiring harness

r

rr

Extended Information:

r

r
• Country of Origin: Mexico

r

• Emissions : Emissions Compliance Exempt

r

• Life Cycle Status: Released

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 6 x 25.3125 x 6 inches

r

• Weight: 8.7 lb

r

rr

PDF:

r 11-12870-B_RIGID-SAE_SR_SERIES-INSTALLATION
